Water Chiller

SKU: waterchiller001 Categories: ,


Water Chiller details

We provide two types:

  • Water-cooled
  • Air-cooled

Technical parameters:

  • Type: Air Cooled or Water Cooled
  • Capacity: 8.3 – 120 KW
  • Refrigerant: R22, R404A
  • Water Vessel Volume: 60L – 400L
  • Power supply: 1P-220V-50Hz; 1P-220V-60Hz; 3P-220V-60Hz; 3P-380V-60Hz; 3P-380V-50Hz
  • Designed condition: Chilled water in/out 12/7C, cooling water in/out 30/35C

Water chiller is a cooling machine, which provides chilled water. Most water cooled chillers use refrigerant in a closed-loop system to facilitate heat exchange from the water, and then pump to a location where the waste heat is transferred to the atmosphere. Recycling and Reusing water constantly.

With this chiller water, we could use it for the food industry, such as seafood, chicken, and poultry.

For our water chiller, both quality and design are very good:

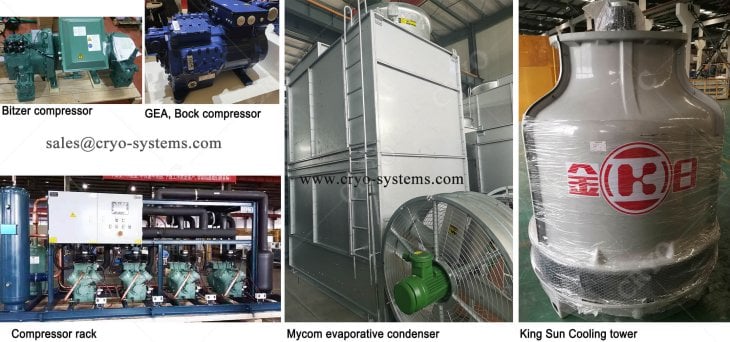

1# Original new German Bitzer compressors

Usually, we’ll use Bitzer screw compressors (from 30HP to 160HP each), and Bitzer reciprocating compressors (from 20HP to 50HP each). Compressor rack is a good choice when we need more than one compressor.

German Bock compressors are also available.

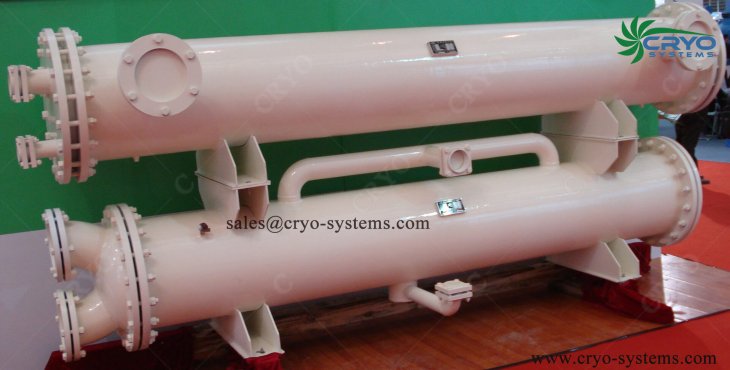

2# Rust-proof shell tube exchanger

In order to ensure zero rust problems, we could use titanium tubes or nickel-copper tubes. So, even it’s seawater, its service life is guaranteed.

3# Professional design and good after-sale services

Professional & Good Service For Design, Pre-Sales, And After-Sale

We guarantee a quick reply within 12 hours.


    Difference solutions have different prices, send your requirement now!

    Successful projects

    Water cooled screw chiller with Hanbell compressor

    Water cooled screw chiller with Bitzer compressor

    Box type water chiller with Copeland compressor for fish cooling

    box type water chiller project
