Vertical type blast freezing air cooler

vertical type blast freezing air cooler,18kw to 100kw vertical type blast freezing air cooler for cold room, cold storage use. The voltage is 220V/380V/415V, electric heater defrost.

SKU: aircooler001 Category:
Description

Description

1. Features for vertical type blast freezing air cooler

CRYO has JE series of vertical type blast freezing air cooler, it also called floor-standing-evaporator use for blast freezer cold room.

  • Pleasant outlook of high-quality corrosion proof steel cabinet, or stainless steel sheet cabinet.

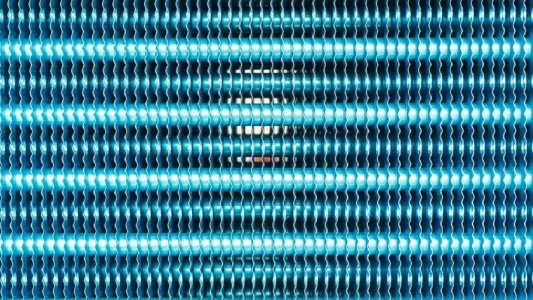

  • Mechanically expanded pipes with Aluminium fins; External fans; better heat transfer & durable
  • Big heat exchanging area, lose less wet, reduce the food wet loss.
  • With external rotor motor fan of low noise,and high stable operation.
  • Vertical structure, easy installation and operation.



vertical type blast freezing air cooler

2. Designation

L 63 280 J E 6 A

L: vertical

V: fan dia 630mm

280: Area (m2)

J: Fin space: 10mm

E: electrical defrost

6: Fan qty

3. Specification

Vertical type blast freezing air cooler

air cooler model01

air cooler model 02

diagram for vertical air cooler

Packaging details: in plywood box
Delivery details: 28 days after deposit received.

For more: you could get in touch with us and leave your message to get the latest price and ask questions, and we will reply as soon as possible.
