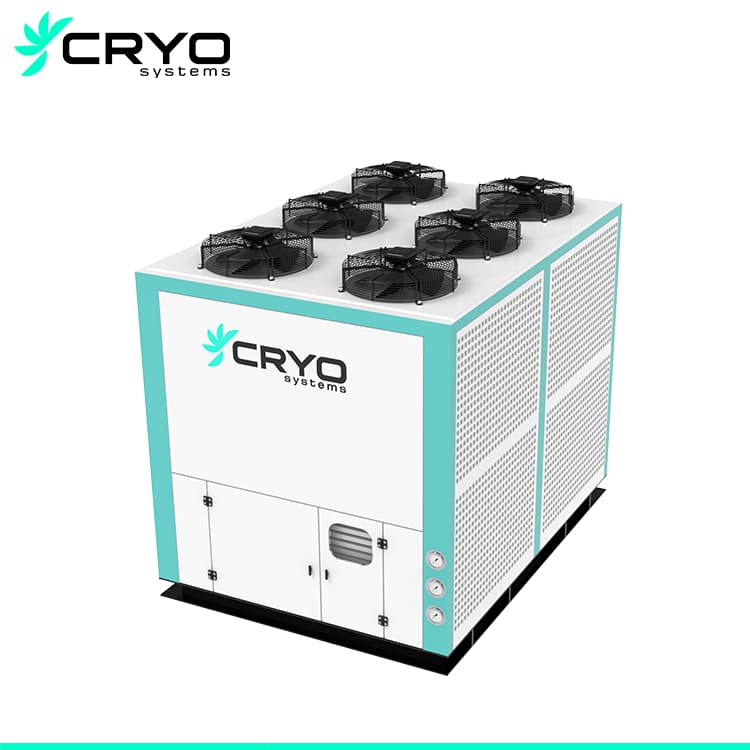

refrigeration condensing unit

SKU: fd96f20a2ea9 Category:
Description

1. Features:

  • Bitzer semi-hermetic piston compressor, ECOLINE series
  • Copper tube-Aluminum Fin air cooled condenser
  • High quality Chinese brand refrigeration parts; can be updated to Danfoss brand
  • Box type design, water-proof, dust-proof, quieter
  • Built-in electric components are optional

2. Model code

X   B   12   M   Y

X: Box type

B: Compressor brand: Bitzer

12: Compressor norminal power(HP)

M: Temperature: M: -10~+5℃, L: -15~-25℃

Y: Refrigerant: Y: R404A, F: R22

3. Specification

Bitzer refrigeration condensing unit: base on condensing Temp 45℃

Temperature: -10~5℃, Refrigerant: R404A

Temperature: -15~-25℃, Refrigerant: R404A

CRYO SYSTEMS Bitzer refrigeration condensing unit components:

① Compressor② Condenser③ Oil heating④ liquid receiver
⑤ Filter ⑥ Sight glasser ⑦ H/L pressure ⑧ Mechanical pressure switch
⑨ Solenoid valve ⑩ Vibration Eliminator ⑪ Oil Separator ⑫ Oil/liquid accumulator
⑬ Oil pressure protection ⑭ Low pressure control

2HP~4HP:
Standard: ①②③④⑤⑥⑦⑧; Optional: ⑨⑭
9HP~14HP:
Standard: ①②③④⑤⑥⑦⑧; Optional: ⑨⑩⑪⑫⑭
18HP~34HP:
Standard: ①②③④⑤⑥⑦⑧⑩⑪⑫⑬; Optional: ⑨⑭

Main-components-xB

XB-diagram

Packing details: In plywood box

Delivery details: 28 days after deposit received
