Danfoss condensing unit

Danfoss condensing unit, semi-hermetic piston compressor, medium, low temperature. Horsepower is 2 to 176HP. equipped with word-famous brand parts

SKU: RefrigerationUnit-danfoss Category:
Description

Description

Danfoss condensing unit

1. Features:

  • Danfoss semi-hermetic piston compressor, ECOLINE series
  • Copper tube-Aluminum Fin air-cooled condenser
  • High quality Chinese brand refrigeration parts; can be updated to the Danfoss brand
  • Water-proof cable connection box for easy connection
  • Compressor rack is available (18HP~176HP)

2. Model code

K B 12 M Y

K: Open type

B: Compressor brand: Danfoss

12: Compressor norminal power(HP)

M: Temperature: M: -5~+5℃; L: -18~-25℃

Y: Refrigerant: Y: R404A, F: R22

3. Specification

Danfoss condensing unit: base on condensing Temp 45℃

Temperature: M: -5~+5℃, Refrigerant: R404A



Temperature: L: -18~-25℃, Refrigerant: R404A

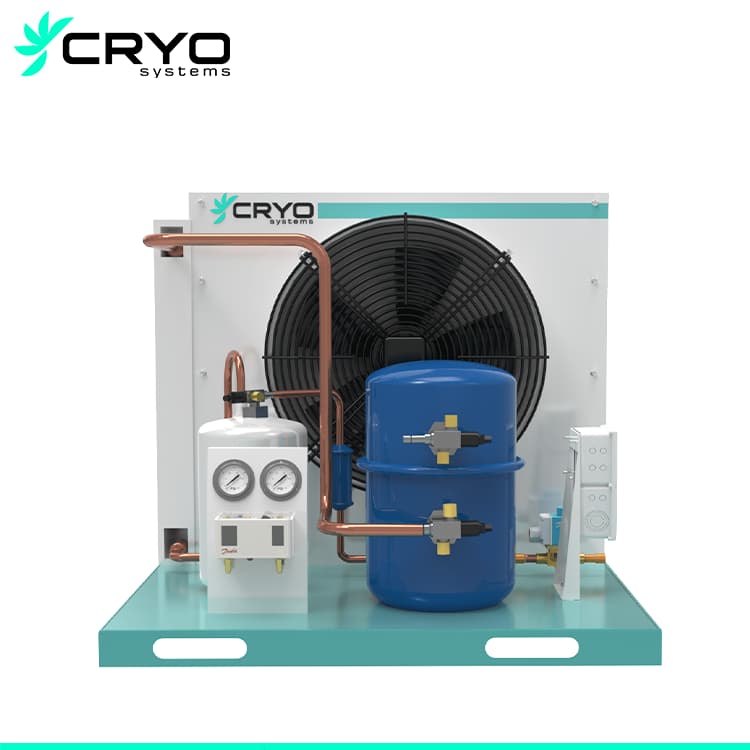

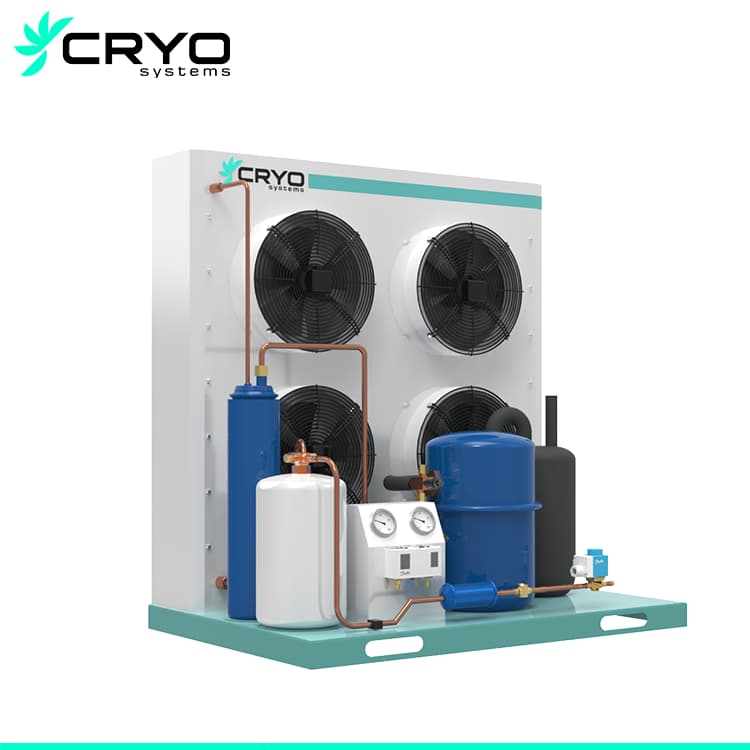

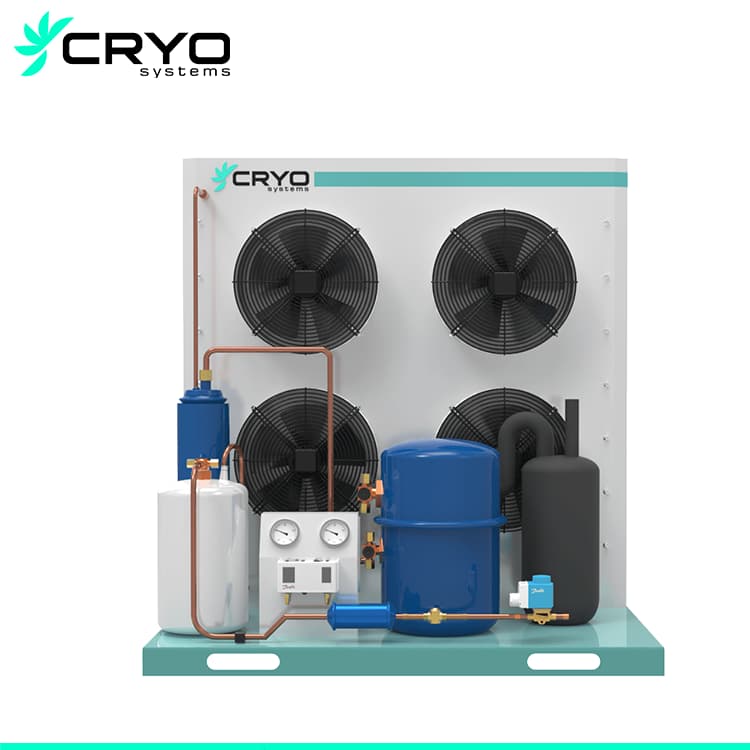

Main components

CRYO SYSTEMS Danfoss condensing unit components:

① Compressor ② Condenser ③ Oil heating ④ Liquid receiver

⑤ Filter ⑥ Sight glasses ⑦ Solenoid valve ⑧ H/L P gauge

⑨ mechanical Pressure controller ⑩ Oil pressure protection

⑪ Vibration eliminator ⑫ Oil separator ⑬ Gas separator ⑭ Suction filter

2HP~14HP:
Standard: ①②③④⑤⑥⑦⑧⑨⑩; Optional: ⑪⑫⑬⑭
18HP~44HP:
Standard: ①②③④⑤⑥⑦⑧⑨⑩⑪⑫; Optional: ⑬⑭

Air cooled bitzer semi-hermetic condenser unit:

bitzer condensing unit draft



bitzer condensing unit draft

Packing details: In plywood box

Delivery details: 28 days after deposit received
