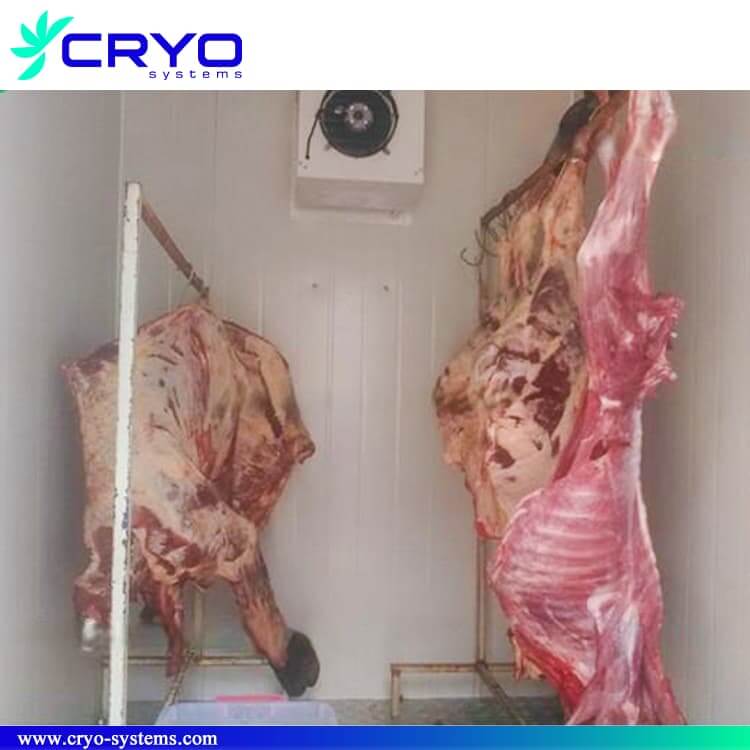

Cold room for meat

Cold room for meat, cool the temperature in a short time, frozen the meat quickly,  keep high-quality condition for long-term, with high efficiency condensing unit, power consumption saving cost.

SKU: coldroomformeat Categories: , ,
Description

Description

Description

1. Temperature range for meat storage:

2. Application:

Markets, Supermarkets, processing rooms, Restaurants, Hotels.

3. Price of cold room for meat

Difference solutions have different prices, send your requirement now!

SPECIFICATIONS

1. SPECIFICATIONS of PU/PIR panels:

Panel thickness: 50/75/100/120/150/200mm.

Panel width: The standard is 960mm, others need to be customized.

Polyurethane (PU)/PIR density: 42kg/m3

Metal Material: color steel plate /Stainless Steel / Embossed Aluminum/ Galvanized Steel, and so on.

Metal thickness: 0.426mm, 0.5mm, 0.6mm, and so on.

Fire rating: B2 level.

Installation: Cam lock connection or continuous panel

Plastic film + brown paper(corner) for each panel for shipping.

PU panels and PIR panels

2. SPECIFICATIONS of cold room doors

CRYO has many kinds of insulated doors and industrial doors, technology and patents adopt from German, Spanish, and USA partners. Quality is guaranteed.

Door type: hinged door, sliding door (Manual and automatic), etc

Door Size: Customized, design for the cold room size

Cold room door material: 100% polyurethane foaming material

Metal Material: Stainless Steel / Galvanized Steel / Embossed Aluminum, and so on.

hinged door and sliding door

3. SPECIFICATIONS of refrigeration units

CRYO designs and builds systems that provide not only reliable temperatures but also energy efficiency and are easy to install and service.

Equipped with energy-efficient compressors, EC fan motors, and the electronic controller system are a few of the built-in elements that help reduce costs.

Condensing units for walk-in coolers, and bigger capacity compressor racks units are available.

Refrigerant: R22, R404A, R134A, R407, R449,R448, R507

Temperature range: Medium temperature(-5C~+10C), low temperature(-15C~-30C) and deep blast temperature(-25~-40C)

Voltages: 220V/50HZ, 220V/60HZ, 380V/50HZ, etc, or Special voltages

Controller: Automatic electric controller, PLC

Range from 2 to 44 HP

Medium temp units available in hermetic and semi-hermetic compressor models

compressor unit

3. Packing and loading:

(1) Plastic film + brown paper (corner) for each panel

For FCL shipment, save space

(2) Plywood package

For LCL shipment, protect panel better.

(3) Panel container loading

Panel will be delivered as part, Piece by piece.

Features for Cold room for meat:

√ Best PU panels give you the best insulation!

√ Keep the meat in good condition for long term!

√ Best surface materials guarantee the lifetime more than 20 years!

√ Energy efficiency and save you 30% electric bill!

√ Can be any sizes customized for your meat storage!

For more: you could get in touch with us and leave your message to get the latest price and ask questions, and we will reply as soon as possible.
