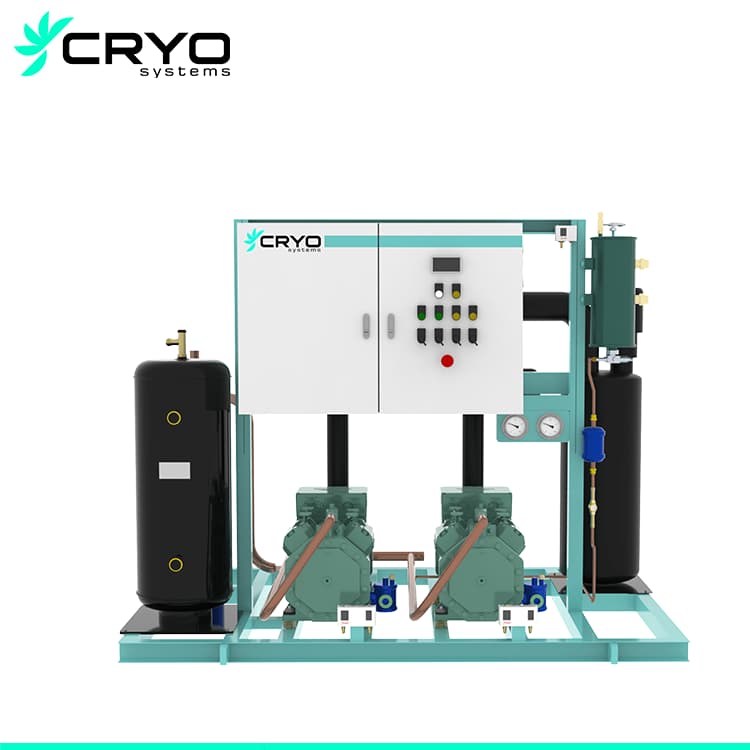

Bitzer Compressor Rack System

Bitzer compressor rack system shares the same discharge pipe, suction pipe, and condenser, etc. Multi compressor rack system has the advantage of space-saving, low maintenance costs, and reduces energy consumption as well.

SKU: CompressorRackSystem001 Categories: ,
Description

Description

Product Description

Bitzer compressor rack system01

Bitzer compressor rack system uses multiple compressors in one system, bigger cooling capacity, safer, easier install and control.

What’s more, each compressor is independent and runs according to system loading, so higher efficiency and longer lifetime.

Danfoss oil balance system

Balanced oil level is very important for the compressor rack. If compressor no oil, it’ll damage soon.

Bitzer compressor rack2

Danfoss pressure controller

For bitzer compressor rack system, each compressor run based on the machine loading, so accurate pressure controller is very important.

Bitzer compressor rack4
Bitzer compressor rack1

High quality copper bending and welding

Specialized bend machine deal technology, 100% no leaking problem. In corners part, we use bending instead of copper corners.

Bitzer compressor rack3

High quality control panels

It’s equipped with Schneider electric, with multi protections including phase protection, phase lack, over current, too constant starting of compressor, discharge temperature, etc.

Features

Compressor typeBitzer compressor and Screw compressor
Horsepower18HP~300HP
Cooling typeAir cooled, water cooled, evaporative
Refrigerant typeR134a, R404a, R507a or R22
Place to assembleIndoor/out door(concrete construction building/steel construction building).
Voltage220V/50HZ, 220V/60HZ, 380V/50HZ etc
ControllerAutomatic electric controller, PLC
Quality Assurance2.8MPA pressure test during produciton

Successful Case

Frozen fruits storage, daily inlet 10 tons, room temp -25C

Customer info: This project is in tropical country, ambient temperature up to +38C most of the year. Considered the machine stability and efficiency, we advise compressor rack systems.
Order info:
Compressor rack: 4x18HP Bitzer semi hermetic compressors, with EC fan, with economizer.
Cold room dimension 32x12x5meter with ante room, 150mm PU panels with 0.6mm color plate.

Bitzer Compressor Rack System
Bitzer compressor rack case
For more: you could get in touch with us and leave your message to get the latest price and ask questions, and we will reply as soon as possible.
